SELF ADHESIVE NON SILICONSIED PILE WEATHER STRIP [AD WS]

More dense brush than high density weather strip and multi-filaments are texturized and heat set to make the brush straight.

This provides excellent resilience of the brush making it more compression set resistant, ensuring a tight seal over longer period.

Technical Specifications
Product A B
Name BASE WIDTH
[mm]
BRUSH HEIGHT
[mm]
PILE FORMATION PACKING
AD WS 9 5 6P (6L) 125 M X 8 ROLLS
AD NS ST 9 9 6P (6L) 100 M X 6 ROLLS
AD NS ST 9 12 6P (6L) 125 M X 4 ROLLS

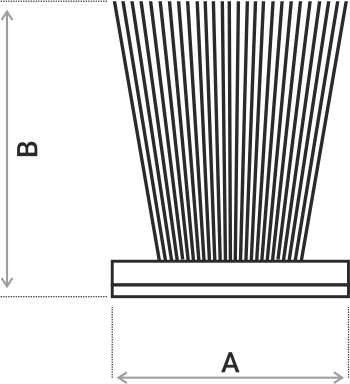

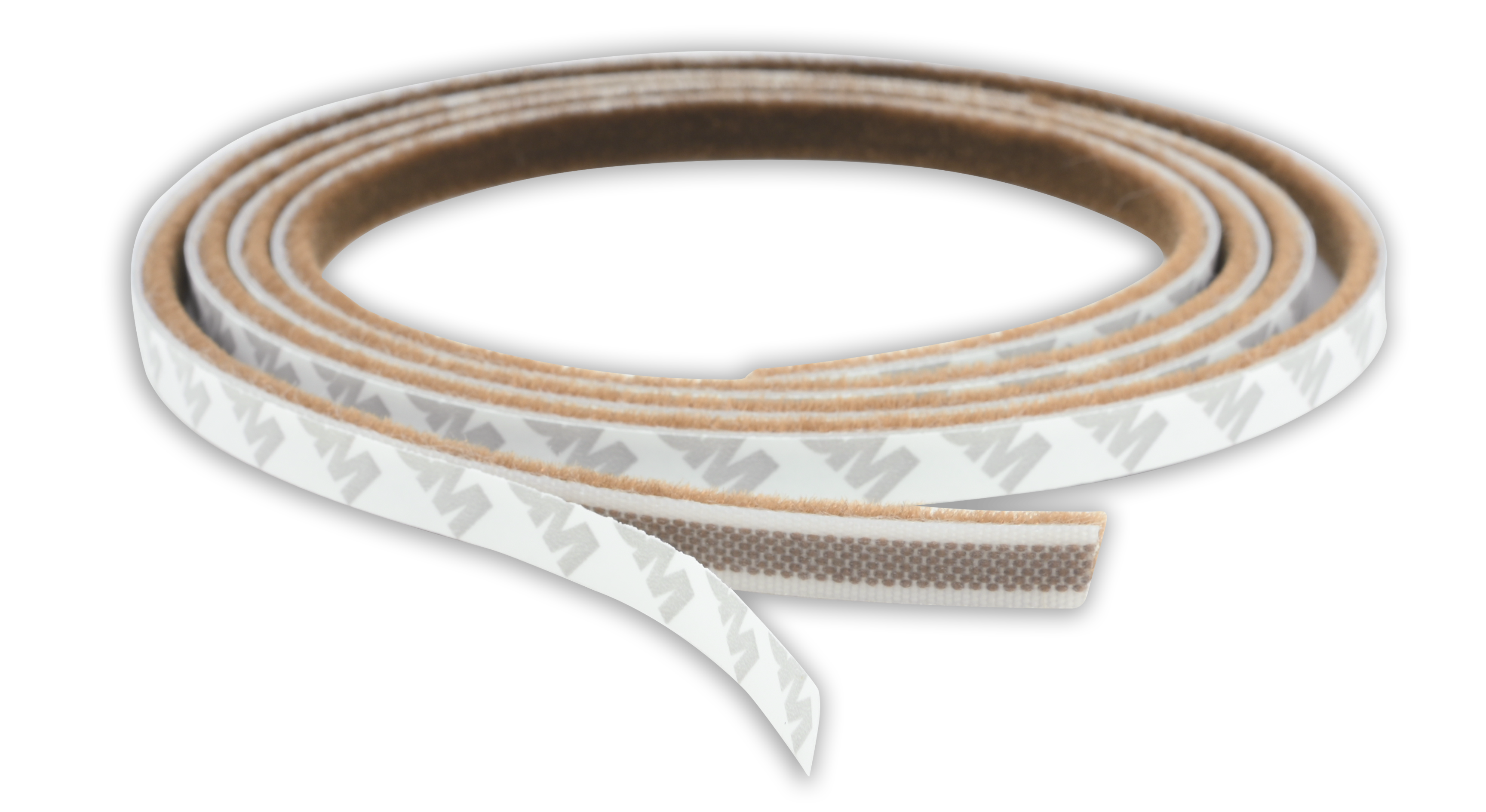

Non Siliconised Pile Weather Strip Pile Weather Strip Diagram

PILE FORMATION :

Pile Formation
