This weather strip is made of highly dense silicone treated multifilament yarn with heat set processed to make resilience effect. It has more thick backing of the polypropylene making it very rigid and durable.
Due to water repellent nature, it reduces water penetration and because of high density, reduces air infiltration therefore, enhance weather resistance making it highly energy efficient, durable and friction resistance.
Technical Specifications

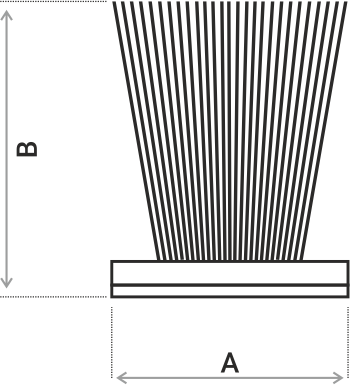

| A | B | ||
|---|---|---|---|
| BASE WIDTH [mm] |
BRUSH HEIGHT [mm] |
PILE FORMATION | PACKING |
| 4 | 4 | 4P (2L) | 300 M X 8 ROLLS |
| 4 | 6 | 4P (2L) | 250 M X 8 ROLLS |
| 4.8 | 5 | 3P (2+1L) | 275 M X 8 ROLLS |
| 4.8 | 6 | 3P (2+1L) | 250 M X 8 ROLLS |
| 4.8 | 8 | 3P (2+1L) | 175 M X 8 ROLLS |
| 6 | 6 | 3P (2+1L) | 200 M X 8 ROLLS |
| 6 | 7 | 3P (2+1L) | 200 M X 8 ROLLS |
| 6 | 8 | 3P (2+1L) | 150 M X 8 ROLLS |
| 6 | 10 | 3P (2+1L) | 125 M X 8 ROLLS |
| 6 | 12 | 3P (2+1L) | 100 M X 8 ROLLS |
| 6 | 14 | 3P (2+1L) | 75 M X 8 ROLLS |
| 6.2 | 6 | 3P (2+1L) | 200 M X 8 ROLLS |
| 6.2 | 7.5 | 3P (2+1L) | 175 M X 8 ROLLS |
| 6.8 | 5 | 3P (3L) | 200 M X 8 ROLLS |
| 6.8 | 6 | 3P (3L) | 200 M X 8 ROLLS |
| 6 | 6 | 4P (2L) | 200 M X 8 ROLLS |
| 6.8 | 4 | 4P (2L) | 250 M X 8 ROLLS |
| 6.8 | 5 | 4P (2L) | 200 M X 8 ROLLS |
| 6.8 | 6 | 4P (2L) | 175 M X 8 ROLLS |
| 6.8 | 7 | 4P (2L) | 150 M X 8 ROLLS |
| 6.8 | 8 | 4P (2L) | 125 M X 8 ROLLS |
| 6.8 | 9 | 4P (2L) | 125 M X 8 ROLLS |
| 6.8 | 10 | 4P (2L) | 100 M X 8 ROLLS |
| 6.8 | 12 | 4P (2L) | 100 M X 8 ROLLS |
