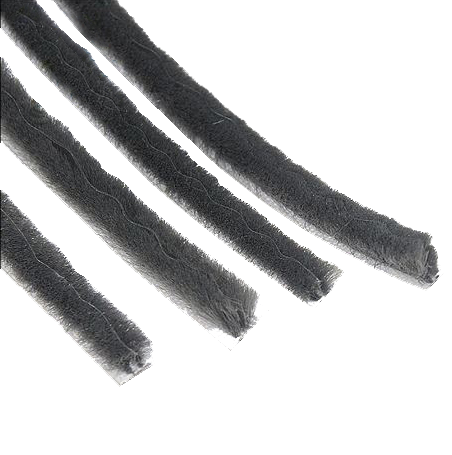

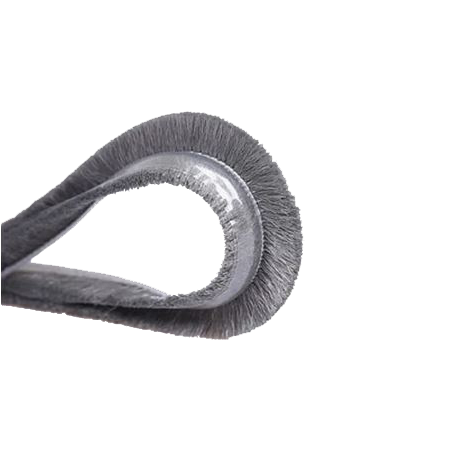

Silicone treated & UV stabilized multifilament yarn with Polypropylene transparent fin welded to the center of the strip.
Transparent plastic fin provides a more complete barrier against air infiltration and water penetration compared to the non-woven fabric fin. It makes the airtight seal which aids noise reduction and the impermeable seal significantly improves weather resistance against rain and moisture.
UV stabilization ensures longevity in direct sunlight.

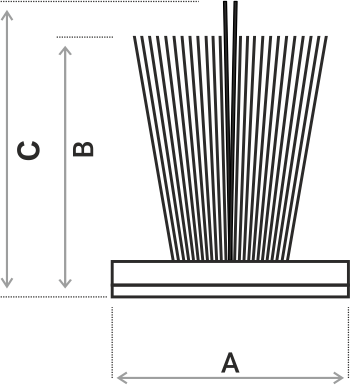

Technical Specifications
| A | B | C | ||
|---|---|---|---|---|
| BASE WIDTH [mm] |
BRUSH HEIGHT [mm] |
FIN HEIGHT [mm] |
PILE FORMATION | PACKING |
| 4.8 | 6 | 6 | 4P (2L) | 250 M X 8 ROLLS |
| 6 | 6 | 6 | 4P (2L) | 225 M X 8 ROLLS |
| 6.2 | 6 | 6 | 4P (2L) | 175 M X 8 ROLLS |
| 6.8 | 5 | 5 | 4P (2L) | 200 M X 8 ROLLS |
| 6.8 | 6 | 6 | 4P (2L) | 175 M X 8 ROLLS |
| 6.8 | 7 | 7 | 4P (2L) | 350 M X 4 ROLLS |
| 6.8 | 8 | 8 | 4P (2L) | 300 M X 4 ROLLS |
| 6.8 | 9 | 9 | 4P (2L) | 250 M X 4 ROLLS |
| 6.8 | 10 | 10 | 4P (2L) | 250 M X 4 ROLLS |
