TRI FIN PILE WEATHER STRIP [TRIFIN SL UV] - EXTRUDED, SILICONISED & UV STABILISED
Silicone treated & UV stabilized multifilament yarn ultrasonically welded on solid extruded base along with central and external fins.
Ultrasonic welding of the brush and fin makes it highly durable. UV-stabilized, silicon-treated materials ensures the product is robust, maintains its shape, and has a long service life.
It gives highest level of sealing performance by reducing air infiltration and water penetration therefore, enhances weather resistance making it highly energy efficient, sound proof.

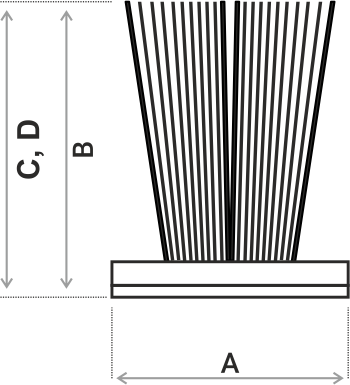

Technical Specifications
| A | B | C | D | |
|---|---|---|---|---|
| BASE WIDTH [mm] |
BRUSH HEIGHT [mm] |
CENTER FIN HEIGHT [mm] |
SIDE FIN HEIGHT [mm] |
PACKING |
| 6.8 | 6 | 6 | 6 | 700 M X 2 ROLLS |
| 6.8 | 7 | 7 | 7 | 600 M X 2 ROLLS |
| 6.8 | 8 | 8 | 8 | 500 M X 2 ROLLS |
In Various Density and Color, with Non Siliconised, siliconised, Bristle, Self adhesive & Fin Sealed Types.
